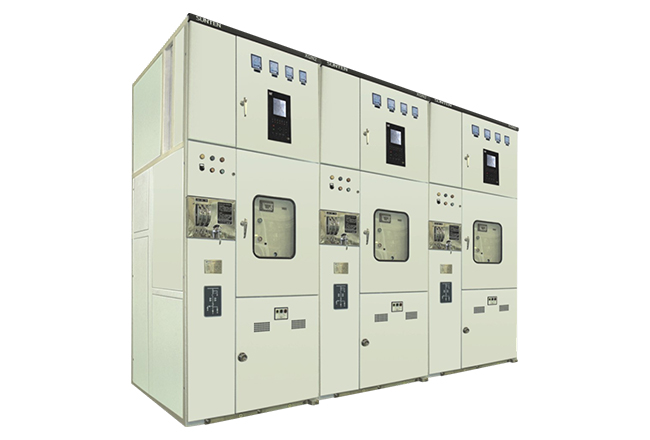

XGN2-12Q (Z) Box-Type Fixed Indoor AC Metal-Enclosed Switchgears

Product model: XGN2-12(Z)
Main application fields: power systems in power plants, substations, and industrial and mining enterprises

Product Overview

Product superiority

Rated Voltage: 3.6~12kV
Applicable System: three-phase AC 50Hz single busbar, single busbar sectioned, and single busbar bypass

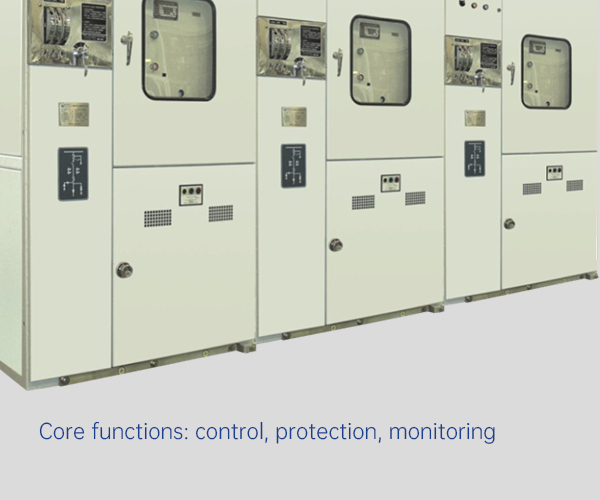

Core functions: control, protection, monitoring
Features: mechanical “five-prevention” interlocking function
Cabinet dimensions: (1,100, 1,200) wide * 1,200 deep * 2,600 high

Product-related parameters

Rated voltage: 3.6~12kV
Applicable system: three-phase AC 50Hz single busbar, single busbar sectioned, and single busbar bypass
Core functions: control, protection, monitoring
Features: mechanical “five-prevention” interlocking function
Cabinet dimensions: (1,100, 1,200) wide * 1,200 deep * 2,600 high
