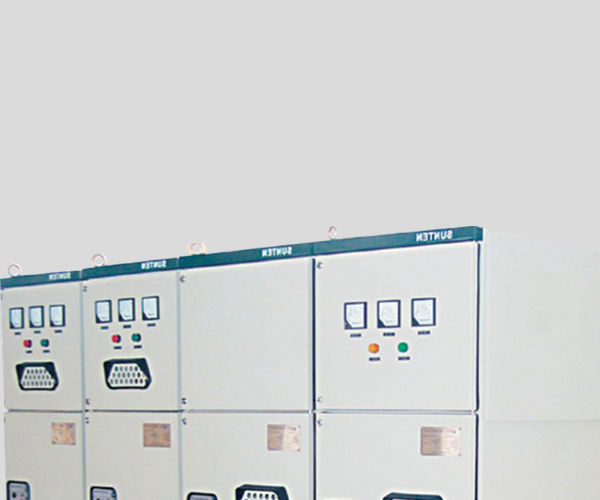

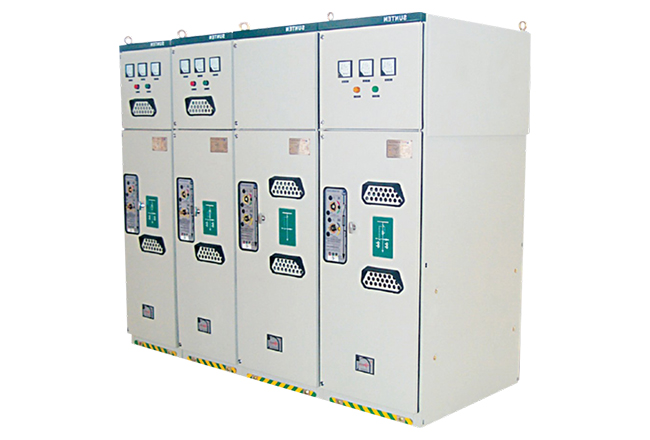

HXGN17-12 Box-Type Metal-Enclosed Ring Main Units

Product model: HXGN17-12
Main application fields: ring main unit supply, and terminal supply

Product Overview

Product superiority

Equipped with vacuum load switches or air-blast load switches, with complete air insulation and no leakage risk. It has a comprehensive mechanical and electrical “five-prevention” interlocking function, and can be configured with intelligent control units to achieve automated and remote control.

Product-related parameters

Rated Voltage: 12kV
Main Switch: vacuum load switch or air-blast load switch

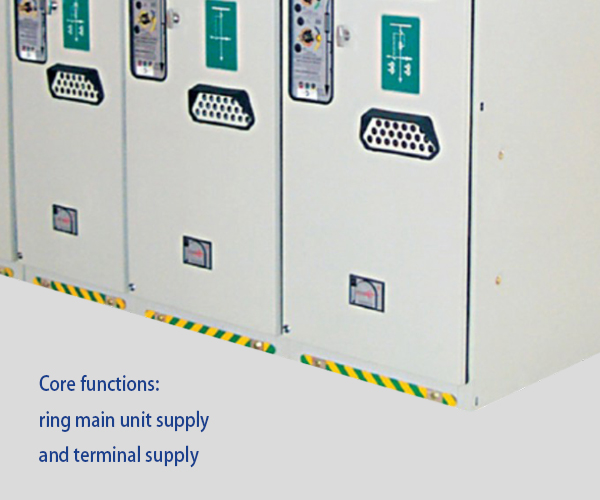

Core functions: ring main unit supply, and terminal supply
Cabinet dimensions: (400, 600, 800) wide * 900 deep * (1,700, 1,900) high
